VANSIL® HR-2000 Wollastonite

VANSIL® HR-2000 Wollastonite is a high aspect ratio, short needle grade of wollastonite. It is used principally as a mineral filler and reinforcing agent to enhance mechanical strength properties in high build coatings, texture paint, block fillers, joint compounds and adhesives. In high film build coatings, the needle-like shape of VANSIL HR-2000 improves mud crack resistance and sag resistance, while also contributing to peak retention in texture coatings. The naturally high pH of wollastonite helps to buffer latex paints and coatings, which contributes to improved corrosion resistance and weathering. This also extends in-can stability and prolongs the lifetime of the coating. It is recommended that high aspect ratio grades of VANSIL be added late in process to avoid possible damage to the needle structure from high shear mixing.

Brand: VANSIL (13 products)

Functions: Extender, Filler

Chemical Family: Silica, Wollastonites

Features: Corrosion Resistance, Crack Resistance, Excellent Dispersibility, Excellent Flowability, Friction Resistance, Good Mechanical Properties, Good Shrinkage Resistance, Heat Resistance, High Mechanical Properties, High Opacity, Provides Good Texture, Sag Resistance, Weather Resistance

End Uses: Abrasives, Cardboard, Cement, Ceramics, Friction Materials, Insulating Materials, Textiles, Wallboards

Technical Data SheetSafety Data Sheet

Enhanced TDS

Knowde-enriched technical product data sheet

Identification & Functionality

Features & Benefits

CASE Ingredients Features
Industrial Additives Features
Product Background
  • VANSIL HR-2000 is a shorter needle, high aspect ratio grade that exhibits properties similar to VANSIL WG for use in applications where a shorter needle is required. VANSIL HR-2000 is slightly coarser than VANSIL HR-1500.
  • It is recommended that high aspect ratio grades of wollastonite be added late in process to avoid possible damage to the needle structure from high shear mixing.

Applications & Uses

Properties

Physical Form
Typical Properties
ValueUnitsTest Method / Conditions
Dry Brightness (Photovolt)min. 85-T-954
Fineness (Retained on 200 mesh)max. 10.0 %LAB 7
Heat Lossmax. 0.5%LAB 10
Particle Size Distribution (Horiba LA-300, D10)4.0μm-
Particle Size Distribution (Horiba LA-300, D50)17.0μm-
Particle Size Distribution (Horiba LA-300, D90)65.0μm-
Particle Size Distribution (Horiba LA-300, D95)88.0μm-
Wet Screen Analysis (Plus 100 mesh)0.1%-
Wet Screen Analysis (Plus 200 mesh)max. 3%-
Wet Screen Analysis (Plus 325 mesh)max. 20%-
Density2.9g/cc-
pH Value (10% SIurry)10 - 11-ASTM D 1208
G. E. Brightness90 - 93-TAPPI T-646
Hegman Fineness (3lbs/gal)0 - 1--
Bulk Density (Loose)25.0Ibs/ft³-
Bulk Density (Tapped)39.0Ibs/ft³-
Average Aspect Ratio12:1--
Average Needle Length65.0μm-
Average Needle Width7.0μm-
Chemical Analysis
ValueUnitsTest Method / Conditions
Calcium Oxide44.9%-
Silicon Dioxide51.3%-
Aluminum Oxide0.9%-
Magnesium Oxide1.6%-
Iron Oxidemax. 0.2%-
Sodium Oxidemax. 0.1%-
Manganese Oxidemax. 0.1%-
Ignition Loss (1000°C)1.1%-

Regulatory & Compliance

Technical Details & Test Data

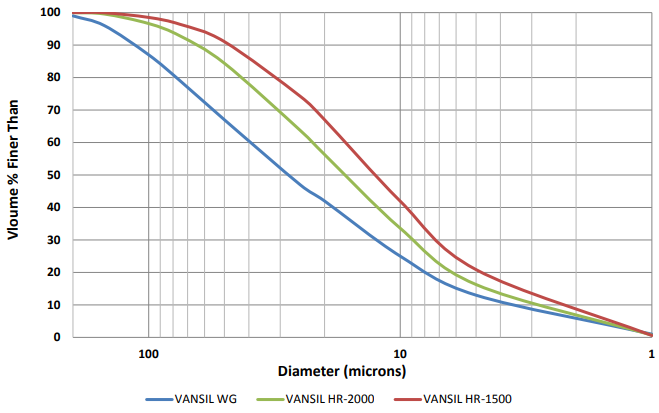

High Aspect Ratio VANSIL® Wollastonite Particle Size Distribution

VANSIL® HR-2000 Wollastonite - High Aspect Ratio Vansil® Wollastonite Particle Size Distribution
